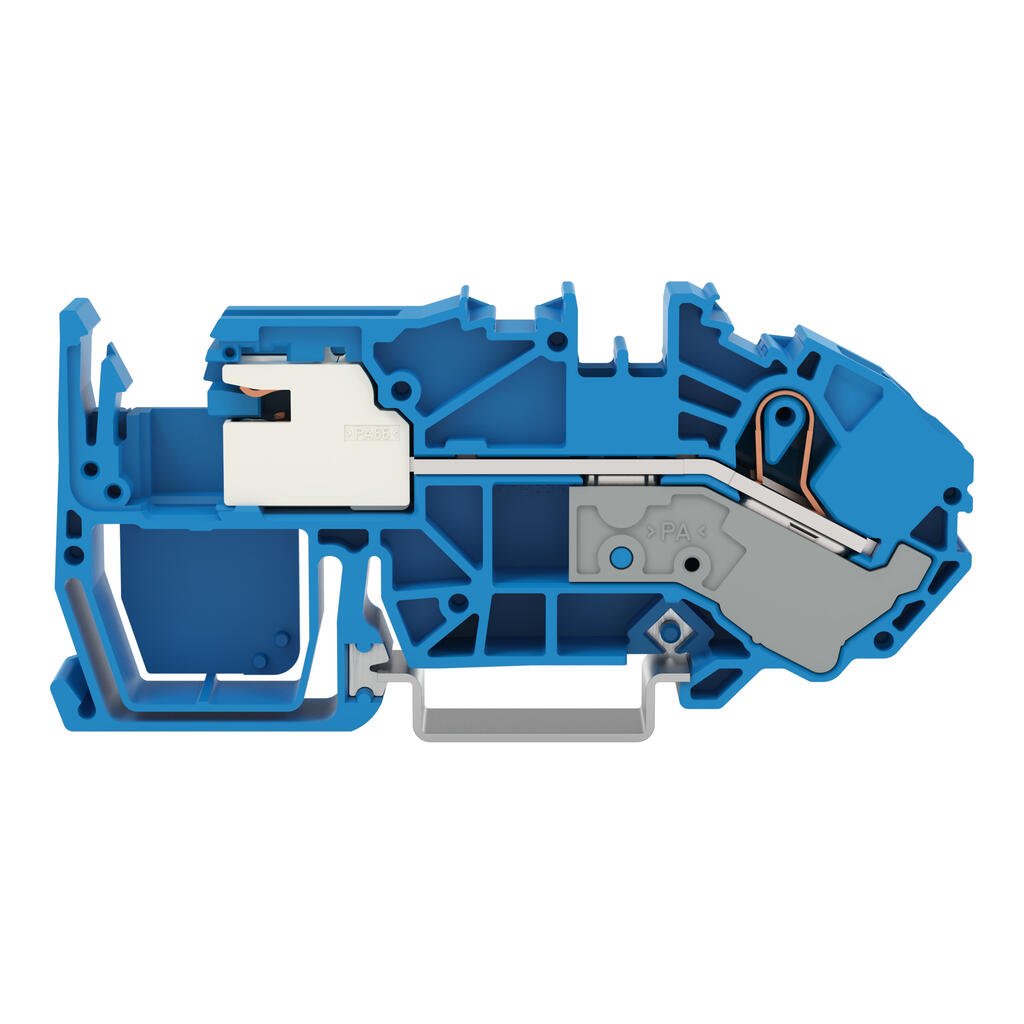

Khối đầu nối N-disconnect 1 dây dẫn 2016-7714

Thương hiệu: Wago

Tình trạng: Còn hàng

Liên hệ

Power Loss Power loss, per pole (potential) 2.238W Rated current IN for specified power loss 73A Resistance value for specified, current-dependent power loss 0Ω Connection data Clamping units 1 Total number of potentials 1 Number of levels 1 Number of jumper slots 2 Connection 1 Connection technology Push-in CAGE CLAMP® Actuation type Operating tool Connectable conductor materials Copper Nominal cross-section 16 mm² Solid conductor 0.5 … 16 mm² / 20 … 6 AWG Solid conductor; push-in termination 6 … 16 mm² / 14 … 6 AWG Fine-stranded conductor 0.5 … 25 mm² / 20 … 4 AWG Fine-stranded conductor; with insulated ferrule 0.5 … 16 mm² / 20 … 6 AWG Fine-stranded conductor; with ferrule; push-in termination 6 … 16 mm² / 10 … 6 AWG Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. AWG ratings were converted according to...

Vận chuyển miễn phí

Hỗ trợ vận chuyển miễn phí trên toàn quốc

Thanh toán linh hoạt

Hỗ trợ thanh toán công nợ từng phần

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Thương hiệu doanh nghiệp uy tín

Chúng tôi là thương hiệu được yêu thích và lựa chọn

Thông tin sản phẩm

Power Loss

Power loss, per pole (potential)	2.238W
Rated current I_N for specified power loss	73A
Resistance value for specified, current-dependent power loss	0Ω

Connection data

Clamping units	1
Total number of potentials	1
Number of levels	1
Number of jumper slots	2

Connection 1

Connection technology	Push-in CAGE CLAMP^®
Actuation type	Operating tool
Connectable conductor materials	Copper
Nominal cross-section	16 mm²
Solid conductor	0.5 … 16 mm² / 20 … 6 AWG
Solid conductor; push-in termination	6 … 16 mm² / 14 … 6 AWG
Fine-stranded conductor	0.5 … 25 mm² / 20 … 4 AWG
Fine-stranded conductor; with insulated ferrule	0.5 … 16 mm² / 20 … 6 AWG
Fine-stranded conductor; with ferrule; push-in termination	6 … 16 mm² / 10 … 6 AWG
Note (conductor cross-section)	Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. AWG ratings were converted according to IEC.
Strip length	18 … 20 mm / 0.71 … 0.79 inches
Wiring direction	Front-entry wiring
