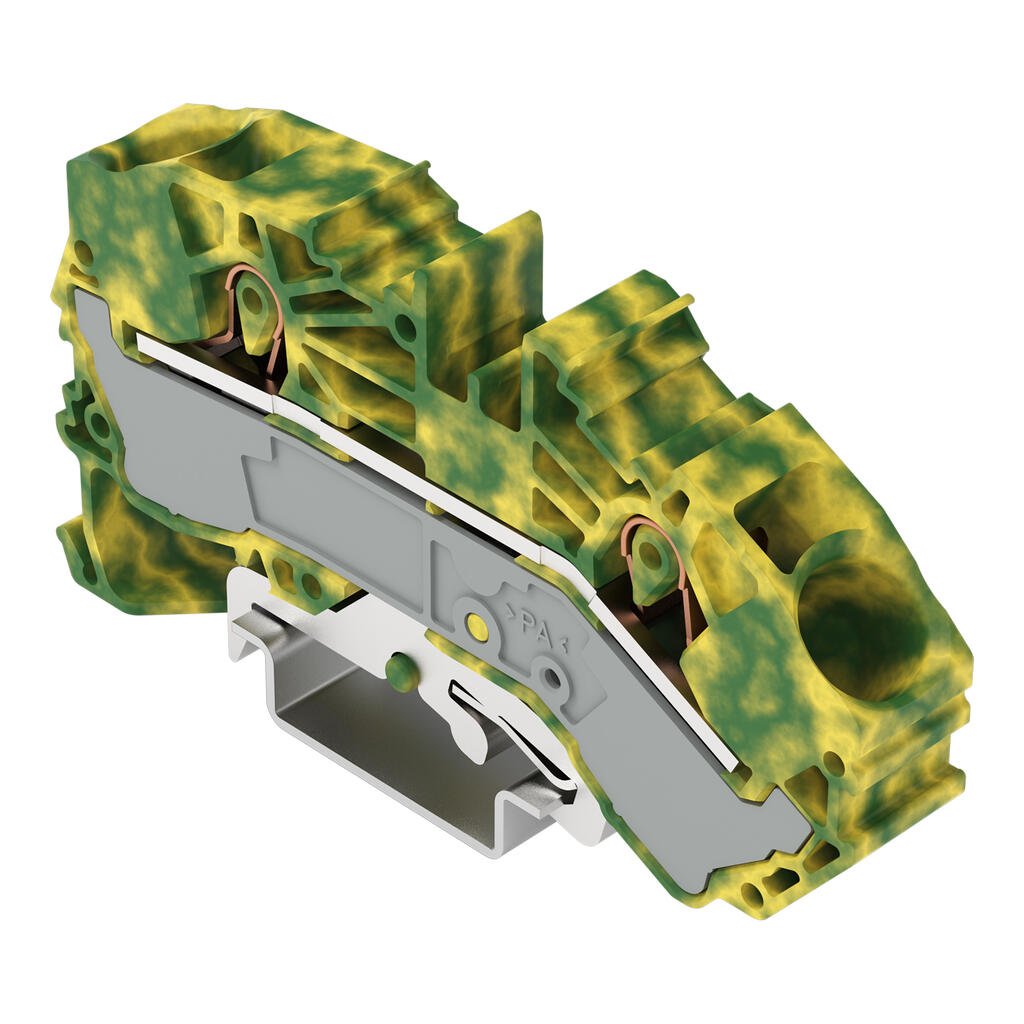

Khối đầu nối đất 2 dây dẫn 2016-7607

Thương hiệu: Wago

Tình trạng: Còn hàng

Liên hệ

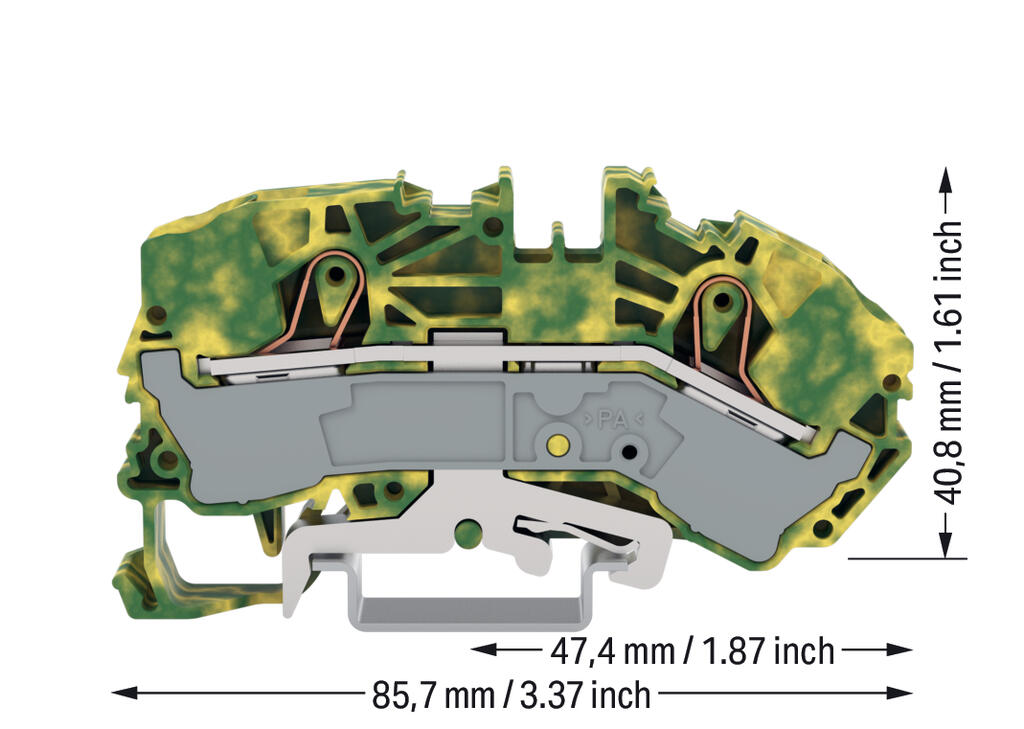

Connection data Clamping units 2 Total number of potentials 1 Number of levels 1 Number of jumper slots 2 Connection 1 Connection technology Push-in CAGE CLAMP® Actuation type Operating tool Connectable conductor materials Copper Nominal cross-section 16 mm² Solid conductor 0.5 … 16 mm² / 20 … 6 AWG Solid conductor; push-in termination 6 … 16 mm² / 14 … 6 AWG Fine-stranded conductor 0.5 … 25 mm² / 20 … 4 AWG Fine-stranded conductor; with insulated ferrule 0.5 … 16 mm² / 20 … 6 AWG Fine-stranded conductor; with ferrule; push-in termination 6 … 16 mm² / 10 … 6 AWG Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. AWG ratings were converted according to IEC. Strip length 18 … 20 mm / 0.71 … 0.79 inches Wiring direction Front-entry wiring Physical data Width 12 mm / 0.472 inches Height 85.7 mm / 3.374 inches Depth from upper-edge of DIN-rail 40.8 mm /...

Vận chuyển miễn phí

Hỗ trợ vận chuyển miễn phí trên toàn quốc

Thanh toán linh hoạt

Hỗ trợ thanh toán công nợ từng phần

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Thương hiệu doanh nghiệp uy tín

Chúng tôi là thương hiệu được yêu thích và lựa chọn

Thông tin sản phẩm

Connection data

Clamping units	2
Total number of potentials	1
Number of levels	1
Number of jumper slots	2

Connection 1

Connection technology	Push-in CAGE CLAMP^®
Actuation type	Operating tool
Connectable conductor materials	Copper
Nominal cross-section	16 mm²
Solid conductor	0.5 … 16 mm² / 20 … 6 AWG
Solid conductor; push-in termination	6 … 16 mm² / 14 … 6 AWG
Fine-stranded conductor	0.5 … 25 mm² / 20 … 4 AWG
Fine-stranded conductor; with insulated ferrule	0.5 … 16 mm² / 20 … 6 AWG
Fine-stranded conductor; with ferrule; push-in termination	6 … 16 mm² / 10 … 6 AWG
Note (conductor cross-section)	Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. AWG ratings were converted according to IEC.
Strip length	18 … 20 mm / 0.71 … 0.79 inches
Wiring direction	Front-entry wiring
