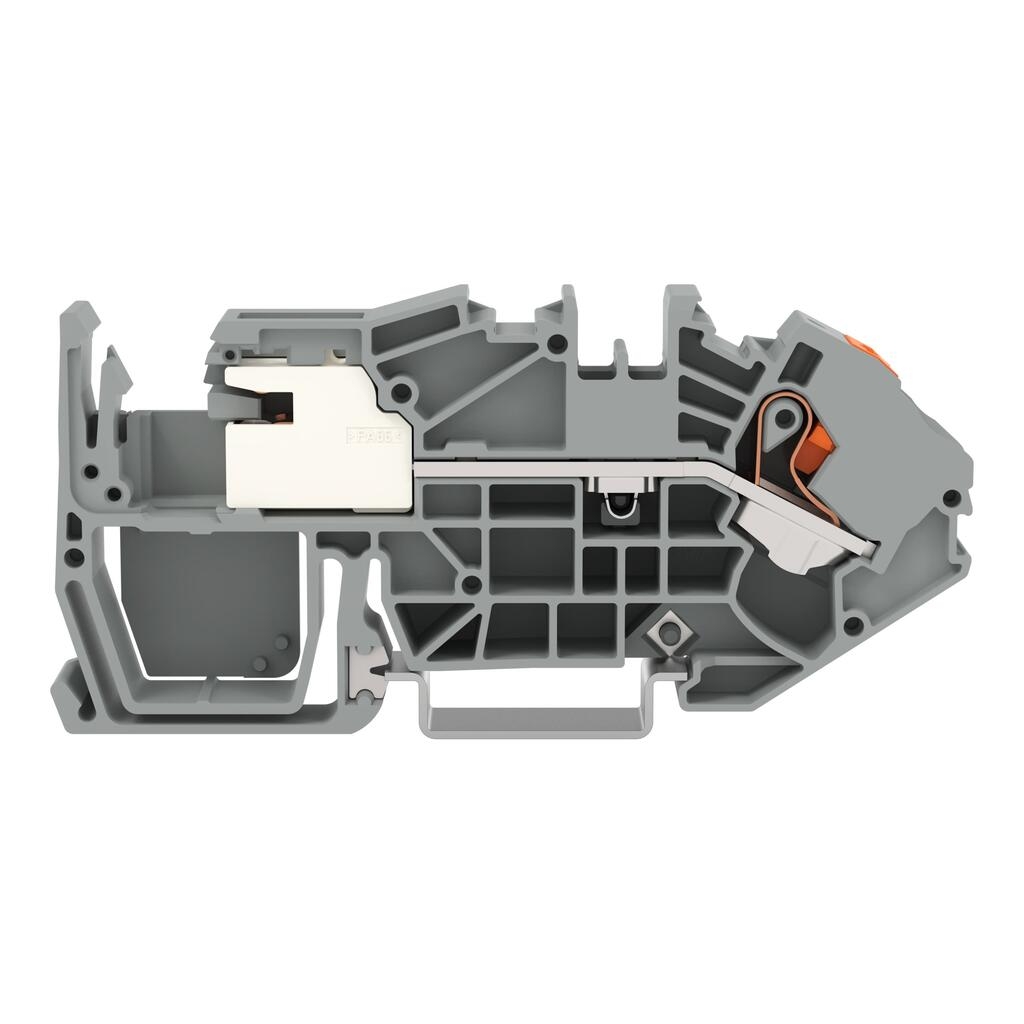

Khối đầu nối ngắt kết nối phân phối điện 1 dây dẫn 2216-7711

Thương hiệu: Wago

Tình trạng: Còn hàng

Liên hệ

Electrical data Ratings per IEC/EN Ratings per IEC/EN 60947-7-1 Nominal voltage (III/3) 250V Rated impulse voltage (III / 3) 4kV Rated current 73A Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3 Power Loss Power loss, per pole (potential) 2.426W Rated current IN for specified power loss 74A Resistance value for specified, current-dependent power loss 0Ω Connection data Clamping units 1 Total number of potentials 1 Number of levels 1 Number of jumper slots 2 Connection 1 Connection technology Push-in CAGE CLAMP® Actuation type Push-button Connectable conductor materials Copper Nominal cross-section 16 mm² Solid conductor 0.5 … 16 mm² / 20 … 6 AWG Solid conductor; push-in termination 6 … 16 mm² / 14 … 6 AWG Fine-stranded conductor 0.5 … 25 mm² / 20 … 4 AWG Fine-stranded conductor; with insulated ferrule 0.5 … 16 mm² / 20 … 6...

Vận chuyển miễn phí

Hỗ trợ vận chuyển miễn phí trên toàn quốc

Thanh toán linh hoạt

Hỗ trợ thanh toán công nợ từng phần

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Thương hiệu doanh nghiệp uy tín

Chúng tôi là thương hiệu được yêu thích và lựa chọn

Thông tin sản phẩm

Electrical data

Ratings per IEC/EN

Ratings per	IEC/EN 60947-7-1
Nominal voltage (III/3)	250V
Rated impulse voltage (III / 3)	4kV
Rated current	73A
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3

Power Loss

Power loss, per pole (potential)	2.426W
Rated current I_N for specified power loss	74A
Resistance value for specified, current-dependent power loss	0Ω

Connection data

Clamping units	1
Total number of potentials	1
Number of levels	1
Number of jumper slots	2

Connection 1

Connection technology	Push-in CAGE CLAMP^®
Actuation type	Push-button
Connectable conductor materials	Copper
Nominal cross-section	16 mm²
Solid conductor	0.5 … 16 mm² / 20 … 6 AWG
Solid conductor; push-in termination	6 … 16 mm² / 14 … 6 AWG
Fine-stranded conductor	0.5 … 25 mm² / 20 … 4 AWG
Fine-stranded conductor; with insulated ferrule	0.5 … 16 mm² / 20 … 6 AWG
Fine-stranded conductor; with ferrule; push-in termination	6 … 16 mm² / 10 … 6 AWG
Note (conductor cross-section)	Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. AWG ratings were converted according to IEC.
Strip length	18 … 20 mm / 0.71 … 0.79 inches
Wiring direction	Front-entry wiring
