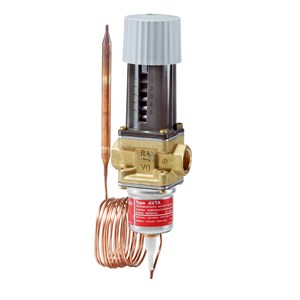

003N0042 THERMO. OPERATED WATER VALVE

Thương hiệu: Danfoss

Tình trạng: Còn hàng

Liên hệ

Thermo. operated water valve, AVTA 15, G, 1/2

Body material: Brass, Opening configuration: Opens on rising sensor temp.,

Charge type: Mass

Vận chuyển miễn phí

Hỗ trợ vận chuyển miễn phí trên toàn quốc

Thanh toán linh hoạt

Hỗ trợ thanh toán công nợ từng phần

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Thương hiệu doanh nghiệp uy tín

Chúng tôi là thương hiệu được yêu thích và lựa chọn

Gross weight 1.55 kg
Net weight 1.15 kg
EAN 5702423002801
Approval EAC
LLC CDC TYSK
PED
RoHS
RoHS China
Body material Brass
Cap. tube length fraction [in] 78 3/4 in
Capillary tube gland Int/Ext Internal
Capillary tube gland size [in] 1/2
Capillary tube gland standard ISO 228-1
Capillary tube gland type G
Capillary tube length [mm] 2000 mm
Charge type Mass
Connection Internal/External Internal
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 2.2 gal/min
Differential pressure [bar] [Max] 10 bar
Differential pressure [bar] [Min] 0 bar
Differential pressure [psi] [Max] 145 psi
Differential pressure [psi] [Min] 0 psi
Flow direction indicator Embossed 1-way arrow
Kv value [m³/h] 1.9 m³/h
Max. pressure on sensor [bar] 25 bar
Max. pressure on sensor [psig] 362.6 psig
Max. sensor temperature [°C] 57 °C
Max. sensor temperature [°F] 134.6 °F
Max. test pressure [bar] Pe 25 bar
Max. test pressure [psig] 362.6 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media Neutral media
Medium temperature range [°C] [Max] 130 °C
Medium temperature range [°C] [Min] -25 °C
Medium temperature range [°F] [Max] 266 °F
Medium temperature range [°F] [Min] -13 °F
Opening configuration Opens on rising sensor temp.
Orifice size [mm] 15 mm
Orifice size fraction [in] 3/5 in
Packing format Multi pack
Product accessories Generic accessories
Water valves accessories
Product description Thermostatic valve
Product family name AVTA
Product group Water regulating valves
Product name Thermo. operated water valve
Quantity per packing format 10 pc
Sensor size (Ø x L) [in] 3/8 x 7 3/32 in
Sensor size (Ø x L) [mm] 9.5 x 180 mm
Serviceable Water valve spare parts
Temperature range [°C] [Max] 30 °C
Temperature range [°C] [Min] 0 °C
Temperature range [°F] [Max] 86 °F
Temperature range [°F] [Min] 32 °F
Type AVTA 15
