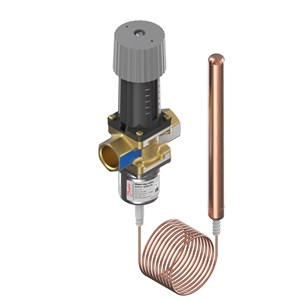

003N0031 THERMO. OPERATED WATER VALVE

Thương hiệu: Danfoss

Tình trạng: Còn hàng

Liên hệ

Thermo. operated water valve, AVTA 20, G, 3/4

Body material: Brass, Opening configuration: Opens on rising sensor temp.,

Charge type: Universal

Hỗ trợ vận chuyển miễn phí trên toàn quốc

Hỗ trợ thanh toán công nợ từng phần

Hỗ trợ chăm sóc khách hàng 24/7

Chúng tôi là thương hiệu được yêu thích và lựa chọn

Gross weight	1.78 kg
Net weight	1.4 kg

EAN

5702423000272

Approval	EAC LLC CDC TYSK PED RoHS RoHS China
Armoring	Yes
Body material	Brass
Cap. tube length fraction [in]	78 3/4 in
Capillary tube gland Int/Ext	Internal
Capillary tube gland size [in]	3/4
Capillary tube gland standard	ISO 228-1
Capillary tube gland type	G
Capillary tube length [mm]	2000 mm
Charge type	Universal
Connection Internal/External	Internal
Connection size [in]	3/4
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	3.9 gal/min
Differential pressure [bar] [Max]	10 bar
Differential pressure [bar] [Min]	0 bar
Differential pressure [psi] [Max]	145 psi
Differential pressure [psi] [Min]	0 psi
Flow direction indicator	Embossed 1-way arrow
Kv value [m³/h]	3.4 m³/h
Max. pressure on sensor [bar]	25 bar
Max. pressure on sensor [psig]	362.6 psig
Max. sensor temperature [°C]	90 °C
Max. sensor temperature [°F]	194 °F
Max. test pressure [bar] Pe	25 bar

Max. test pressure [psig]	362.6 psig
Max. Working Pressure [bar]	16 bar
Max. Working Pressure [psig]	232 psig
Media	Neutral media
Medium temperature range [°C] [Max]	130 °C
Medium temperature range [°C] [Min]	-25 °C
Medium temperature range [°F] [Max]	266 °F
Medium temperature range [°F] [Min]	-13 °F
Opening configuration	Opens on rising sensor temp.
Orifice size [mm]	20 mm
Orifice size fraction [in]	4/5 in
Packing format	Multi pack
Product accessories	Generic accessories Water valves accessories
Product description	Thermostatic valve
Product family name	AVTA
Product group	Water regulating valves
Product name	Thermo. operated water valve
Quantity per packing format	10 pc
Sensor size (Ø x L) [in]	23/32 x 8 1/4 in
Sensor size (Ø x L) [mm]	18 x 210 mm
Serviceable	Water valve spare parts
Temperature range [°C] [Max]	65 °C
Temperature range [°C] [Min]	25 °C
Temperature range [°F] [Max]	149 °F
Temperature range [°F] [Min]	77 °F
Type	AVTA 20
