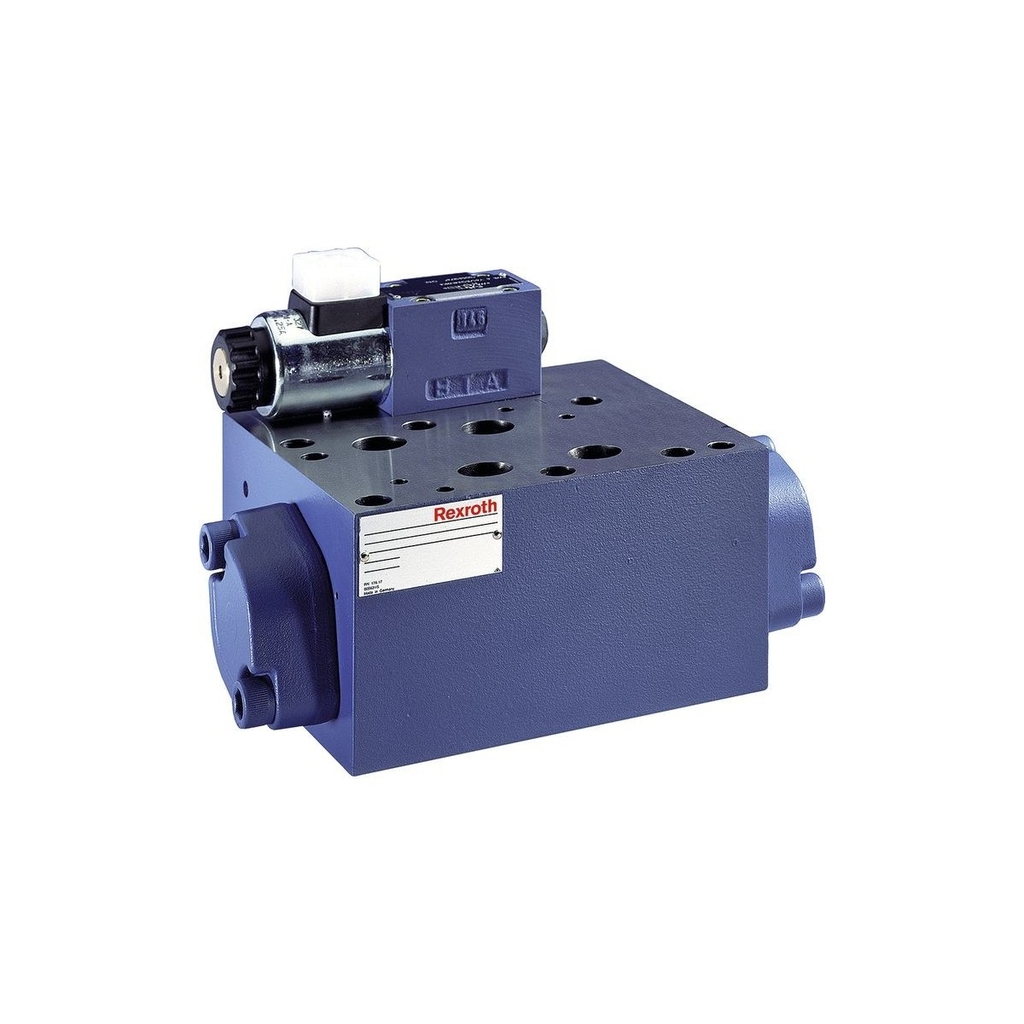

DIRECTIONAL SHUT-OFF VALVES, INTERNALLY PILOT OPERATED, EXTERNALLY PILOT OPERATED

Thương hiệu: REXROTH

Tình trạng: Còn hàng

Liên hệ

Shut-off valves, 4/2 and 4/3 directional isolator valves: Z4WE6 | Z4W(E)H10-4X | Z4W(E)H16 | Z4W(E)H22 2 types of actuation: – Electrohydraulic (type WEH) – Hydraulic (type WH) – available Valve type Z4WEH are directional spool valves with electrohydraulic actuation. They control the start and stop of a flow, and function as an emergency on–off isolating valve or on–off isolating/bypass valve, primarly used for servo/proportional systems Features Sizes 10 Directional spool valve, pilot operated Function as shut-off through-valve or shut-off/through valve/short-circuit valve Free flow in P and T in every spool position Porting pattern to ISO 4401-05-04-0-05 Wet-pin DC or AC voltage solenoids, optional Manual override, optional Electrical connection as individual or central connection Switching...

Vận chuyển miễn phí

Hỗ trợ vận chuyển miễn phí trên toàn quốc

Thanh toán linh hoạt

Hỗ trợ thanh toán công nợ từng phần

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Thương hiệu doanh nghiệp uy tín

Chúng tôi là thương hiệu được yêu thích và lựa chọn

Thông tin sản phẩm

Features

Sizes 10
Directional spool valve, pilot operated
Function as shut-off through-valve or shut-off/through valve/short-circuit valve
Free flow in P and T in every spool position
Porting pattern to ISO 4401-05-04-0-05
Wet-pin DC or AC voltage solenoids, optional
Manual override, optional
Electrical connection as individual or central connection
Switching time adjustment, optional
Stroke adjustment of main spool, optional
Inductive position switch and proximity sensors
