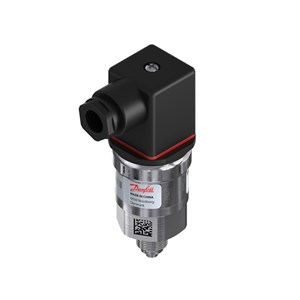

CẢM BIẾN ÁP SUẤT 060G1100 PRESSURE TRANSMITTER

Thương hiệu: Danfoss

Tình trạng: Còn hàng

Liên hệ

Pressure transmitter, MBS 3000, 0.00 bar – 4.00 bar, 0.00 psi – 58.02 psi

Pressure unit reference: Sealed gauge, Output signal: Current, Electrical connection: DIN-plug, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3000-1631-A1AB04-0

Vận chuyển miễn phí

Hỗ trợ vận chuyển miễn phí trên toàn quốc

Thanh toán linh hoạt

Hỗ trợ thanh toán công nợ từng phần

Chăm sóc 24/7

Hỗ trợ chăm sóc khách hàng 24/7

Thương hiệu doanh nghiệp uy tín

Chúng tôi là thương hiệu được yêu thích và lựa chọn

Thông tin sản phẩm

Gross weight	0.19 kg
Net weight	0.15 kg

EAN

5702423058051

+ supply	Pin 1
– common	Pin 2
Accuracy, max. +/- FS [%]	1 %
Accuracy, typical +/- FS [%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [Max]	85 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	ATEX
Approval comments	ATEX Ex nA IIA T3 Gc
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Compensated temp. range [°F] [Max]	176 °F
Compensated temp. range [°F] [Min]	32 °F
Electrical conn. Male/Female	Male and Female
Electrical connection	DIN-plug
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
Flush diaphragm	No
High Clipping Level	22.4
Identical product	060G4062
International Article Number	5702423058051
Intrinsically safe	No
Low Clipping Level	3.6
Medium temperature range [°C] [Max]	85 °C
Medium temperature range [°C] [Min]	-40 °C

Medium temperature range [°F] [Max]	185 °F
Medium temperature range [°F] [Min]	-40 °F
Non-linearity BFSL ±FS [%]	0.5 %
Output signal	Current
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	24 bar
Overload pressure max. [psi]	348 psi
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4
Pressure connection standard	EN 837
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [Max]	4 bar
Pressure range [bar] [Min]	0 bar
Pressure range [psi] [Max]	58.02 psi
Pressure range [psi] [Min]	0 psi
Pressure unit reference	Sealed gauge
Product group	Sensors
Product name	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	14 pc
Response time max. [ms]	4 ms
Specification key	MBS 3000-1631-A1AB04-0
Supply voltage [V] DC [Max]	32 V
Supply voltage [V] DC [Min]	9 V
Type	MBS 3000
